Mini IP65 gps motorcycle tracker For Motorbike , Portable GSM GPS Tracker Anti - Theft
Performance Parameters:
| Content | Specs. |

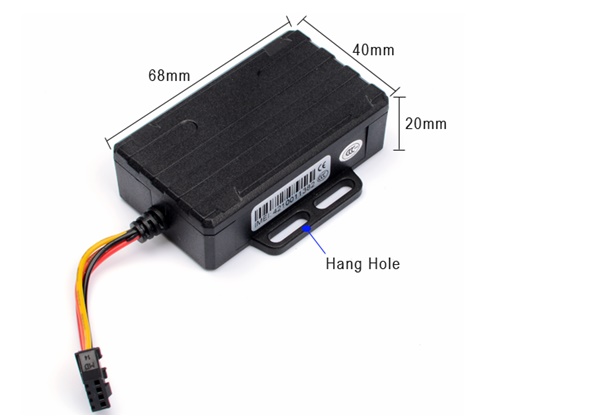

| Dim. | 70*40*20mm |
| Weight | 0.2kg |
| Network | GSM/GPRS/GPS |
| Band | 900/1800/1900MHz or 850/900/1800/1900MHz |
| GPS chip | Ublox-7 |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5 m |
| Time To First Fix | Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
| Work Voltage | DC 9-75V |
| Battery | Chargeable changeable 3.7V /200Mah Li-ion battery |
| Standby work current | < 30mA |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
Main Functions:
1. GSM four frequency(GSM850/900/1800/1900MHZ) system global general
2. Built-in switching power supply, exceed wide voltage input range: 9-75 VDC
3. GPS continuous GPS positioning, GPRS report regularly
4. Support SMS message to check the location info
5. Built-in vibration sensor, realization vehicle anti-theft intelligently
6. ACC the ignition signal detection,vehicle status prompted
7. Waterproof designed
8. Built-in backup battery, realize the illegal cut the line alarm

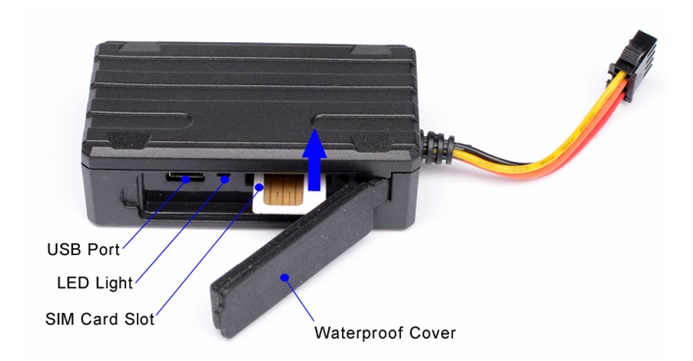

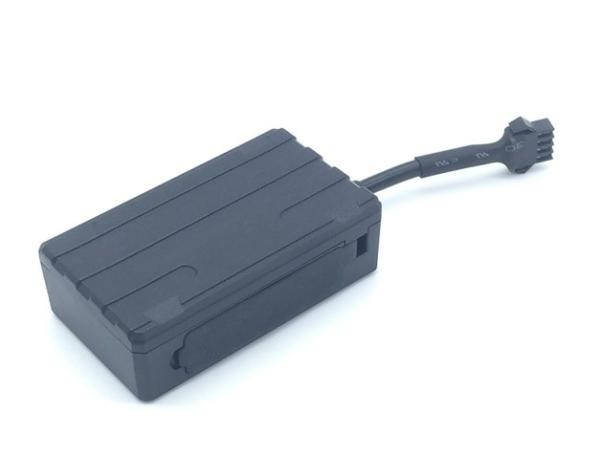

Detail Pictures:
Installation:
Install the tracker is hidden installation, you'd better to install it with the help of professional companies or workers authorized by the distributor. Please install it according to the following instruction.
1. To avoid the thief’s destruction, the tracker should be installed in a hidden place.
2. Don't put the tracker together with the emission sources, such as the parking radar system, alarms and other vehicle-carried communication terminals.
3. You can fix the tracker with the cable tie, or glue it with wide strong sponge double-sided tapes
4. Because the tracker has GSM and GPS antenna inside, please make sure the reception side of GPS is upward (facing the sky), and there is no metal shelter above the tracker. Suggestions are as follow:
a. Hidden area under the decoration board below the front windshield or back windshield
b. Hidden area around the front panel (with a surface made of non-metal materials)
Applications:
Motorcycle factory , E-bike factroy, EV; Electric Vehicle; LEV company, GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
1) main device 1 pcs
2) Installation cables 1 set
3) Usage instructions
4) Warranty card
5) Certification
